PARBOILING – The Primary Science Of Rice Manufacturing

The process of wetting, heating, steaming and drying of paddy is called ‘Parboiling’. The purpose of this process is to produce physical, chemical, modifications in the cereal with economic, nutritional and practical advantages:

Lower brokens
than raw rice

Low free fatty
acids in rice bran

Higher oil content
in rice bran

SINGLE STAGE – SINGLE STEAMING

Hot water is filled in tanks
Paddy filled in tank
Soaking for 6 hours
Water is discharged
Paddy is steamed
Discharge to Dryer
Drying at 120*C for 6 hours

SINGLE STAGE - DOUBLE STEAMING

Paddy is filled in tanks
Steaming done in tanks
Cold water is filled in same tank
Soaking for 6 hours
Water is discharged
Second steaming done
Discharge to Dryer

THREE STAGE DOUBLE STEAMING FOR WHITE RICE (LONG GRAIN)

Paddy filled in small tank on top
Steaming in small tank
Cold water filled in big tank
Soaking for 6 hours
Water discharged
Second Steaming in small tank at the bottom
Discharge to Dryer
Drying at 120/100*C for 8 hours

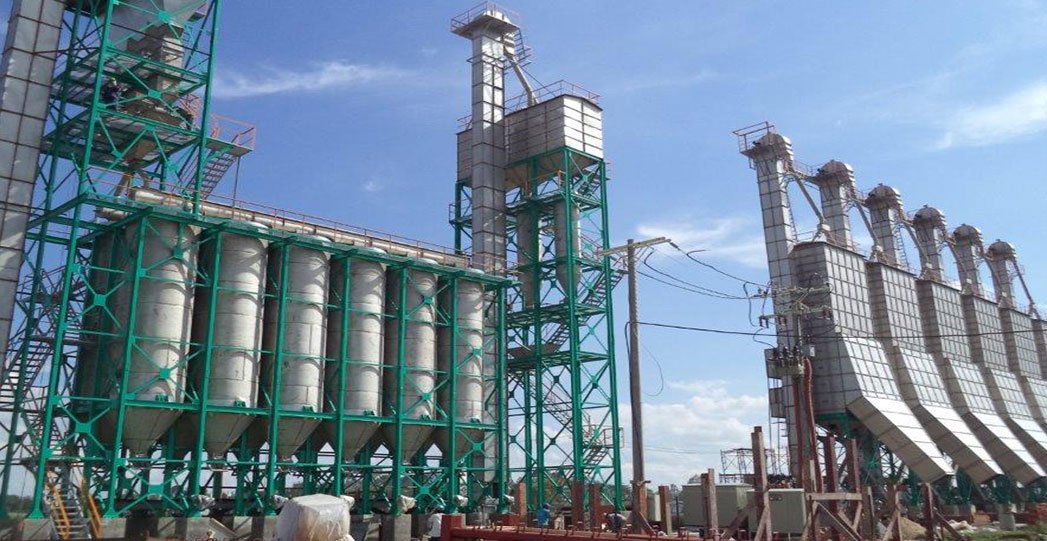

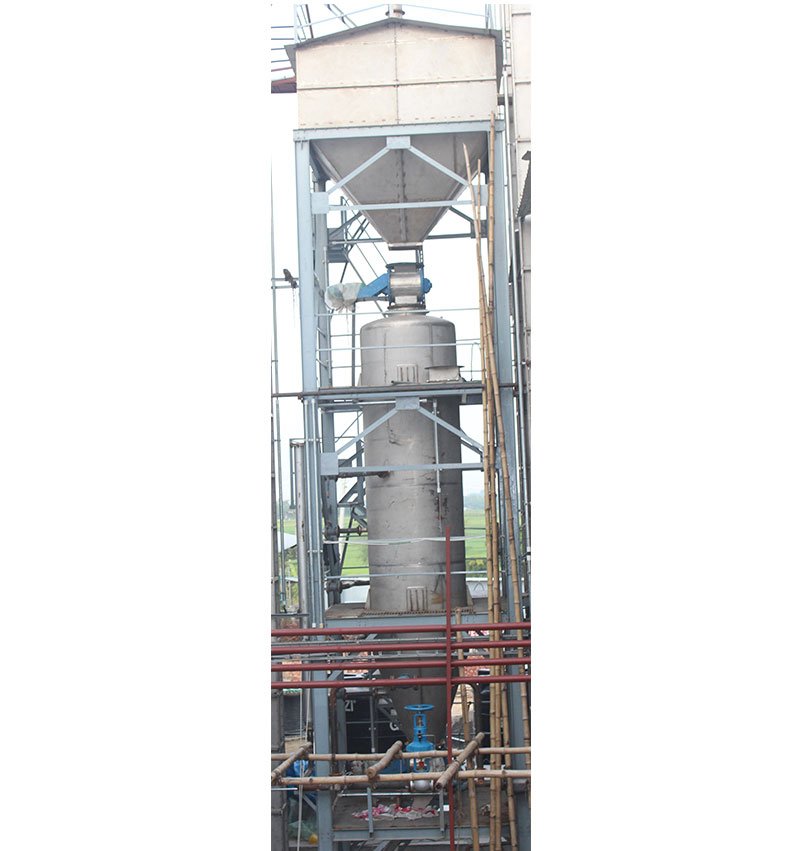

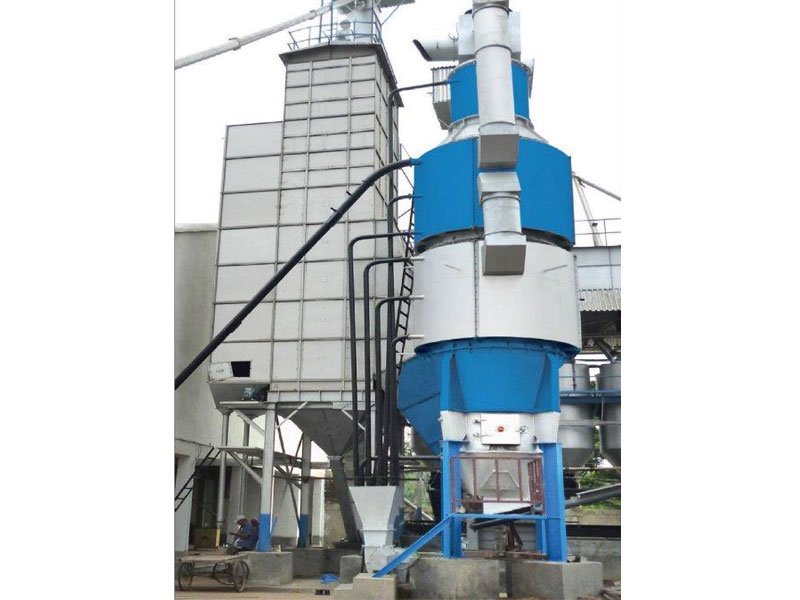

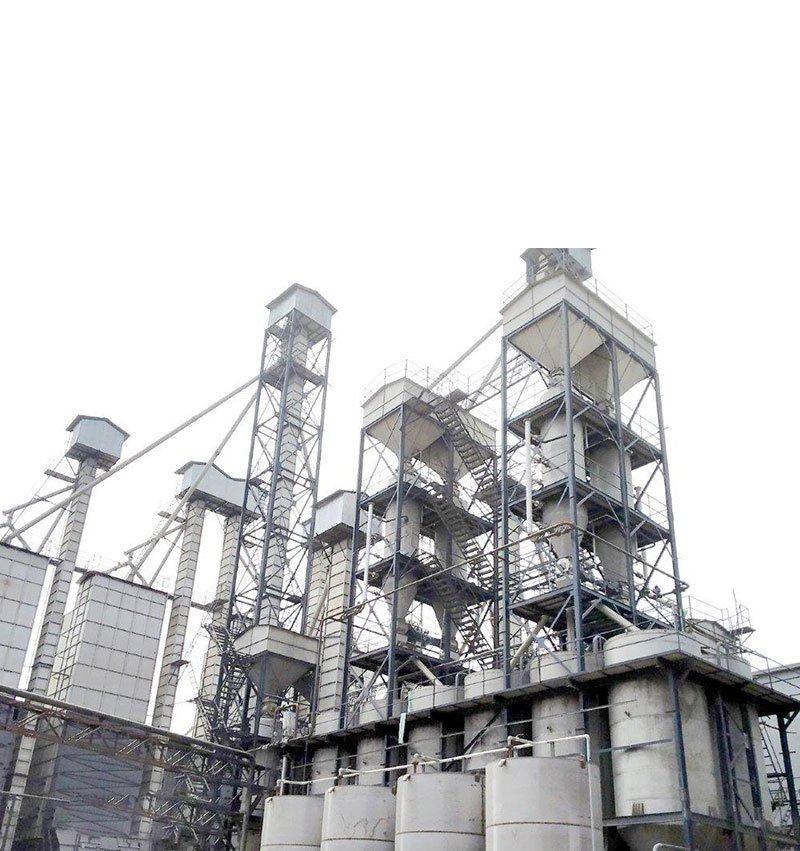

CONTINUOUS COOKER

CONTINUOUS COOKER FOR PRE-STEAMING & POST STEAMING

This process ensures minimum 2% Less Brokens.

Pre steaming operation – Automatic input of raw paddy into pre cooker with steam pressure and temperature controls.

Water filling in soaking tanks with level sensors.

Continuous circulation of water. Steam injector connected to soaking tanks to ensure constant temperature.

After 3 hrs. of soaking drain out of water from soaking tanks.

Paddy discharged from soaking tanks to continuous cooker for second steaming.

Cooker operation – input & output of paddy flow into cooker controlled both at the top and bottom by rotary valves and level sensors. Pressure reducing system to ensure constant pressure and temperature.

CONTINUOUS STEAMING PLANT – A SOLUTION FOR OPTIMISED PRODUCTION

PLC CONTROLLED

LESS
BROKENS

UNIFORM COLOUR

COOKER CAPACITY 15TPH TO 25TPH

AGED or SEASONED RICE	STEAMED RICE
‘Aged’ or ‘Seasoned’ Rice is the rice stored for 10 to 12 months.	The cooking quality, colour and taste similar to ‘Aged rice’.
The quality and taste changes after cooking.	No storage of Paddy or rice required.
Long storage might result in fungus, insects or rodents.
Loss in weight.
Requires large storage space and blocks the capital.

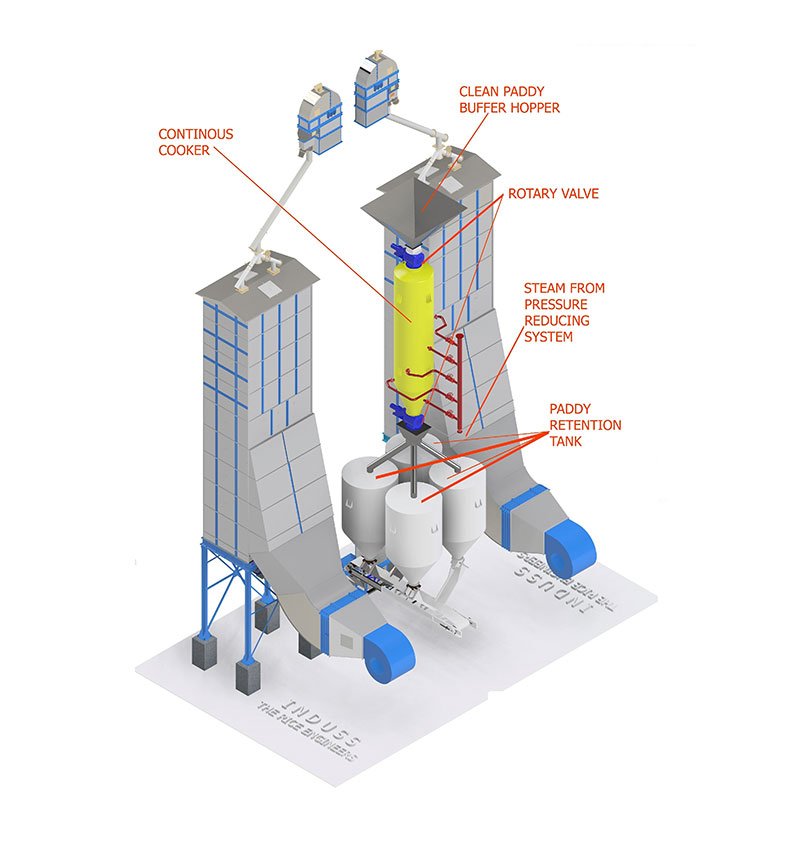

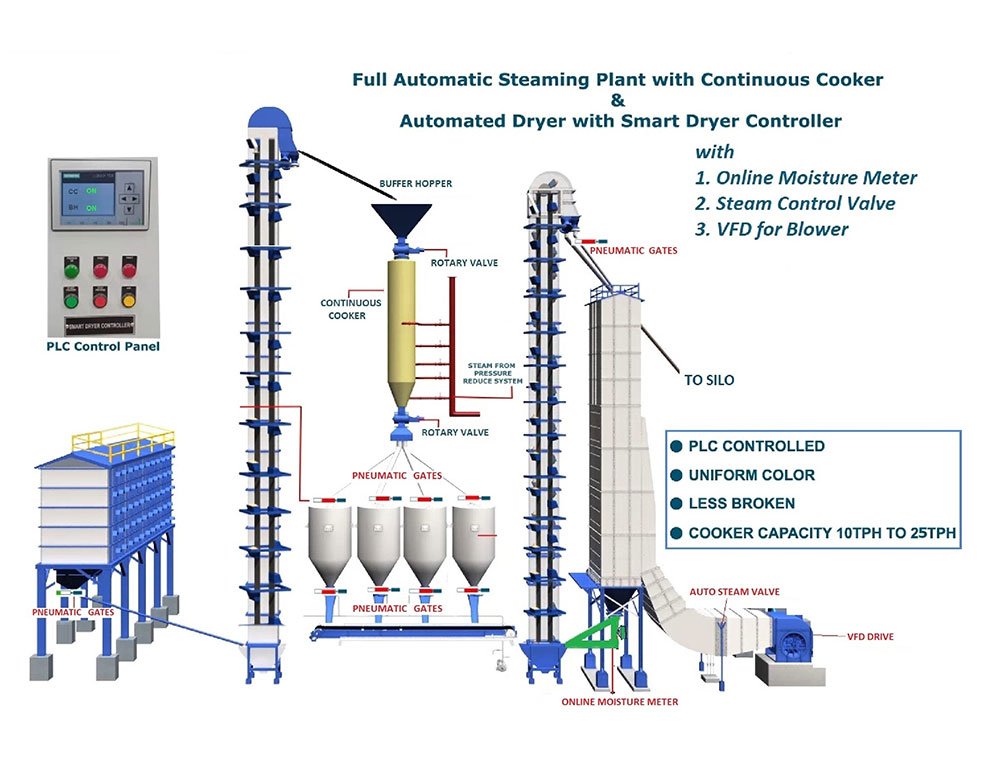

FULL AUTOMATIC STEAMING PLANT
WITH CONTINUOUS COOKER

Pneumatic gate under SILO (optional extra feature) will open for elevator to fill buffer hopper above cooker.
Rotary valve above cooker opens for paddy filling controlled by sensors in the cooker.
Continuous steaming in cooker through PRS system. 5 streamlines at different positions to ensure uniform cooking. Continuous discharge of paddy in retention tanks through bottom rotary valve.
Pneumatic gate above first retention tank opens and paddy is filled. High level sensor in retention tank closes the gate automatically. Pneumatic gate above second tank opens automatically and filling continues. This process goes on till the last tank.
Paddy is stored in tanks for a fixed time to ensure tempering and uniform colour. After the fixed time, paddy will discharge automatically through pneumatic gate into the dryer. Once the tank is empty, gate closes automatically.
The above process continues till the last tank.
Dryer duct temperature controlled via steam valve (PID) based on time and temperature can be controlled. It can be based on online moisture sensor (optional).
All processes are controlled through a single PLC panel.

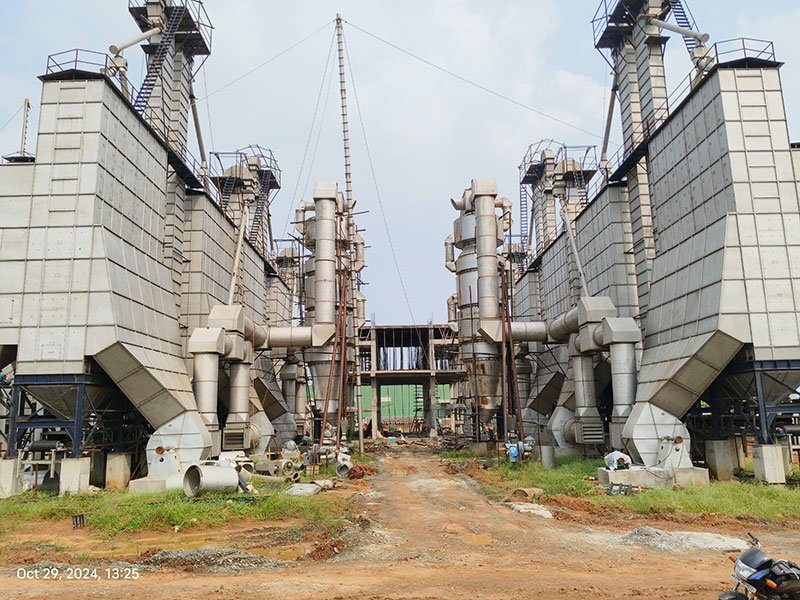

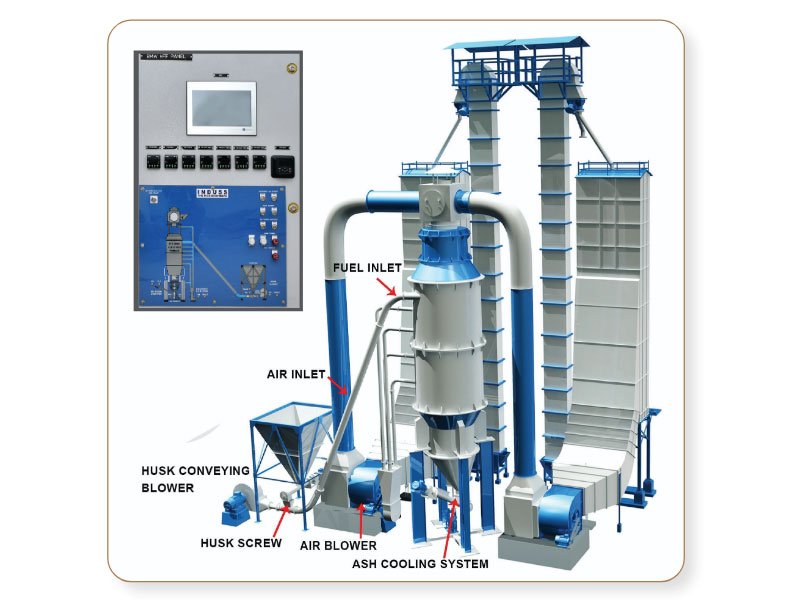

PADDY & MAIZE DRYER WITH PLC CONTROLLED FURNACE

Husk Furnace with Automatic Controls

Low Husk Consumption – 30% less than boiler
Compact design – less space
One furnace for multiple dryers
Low power requirement
No chimney required
Automatic cold ash discharge
Temperature range 60°C to 170°C

ACCESSORIES

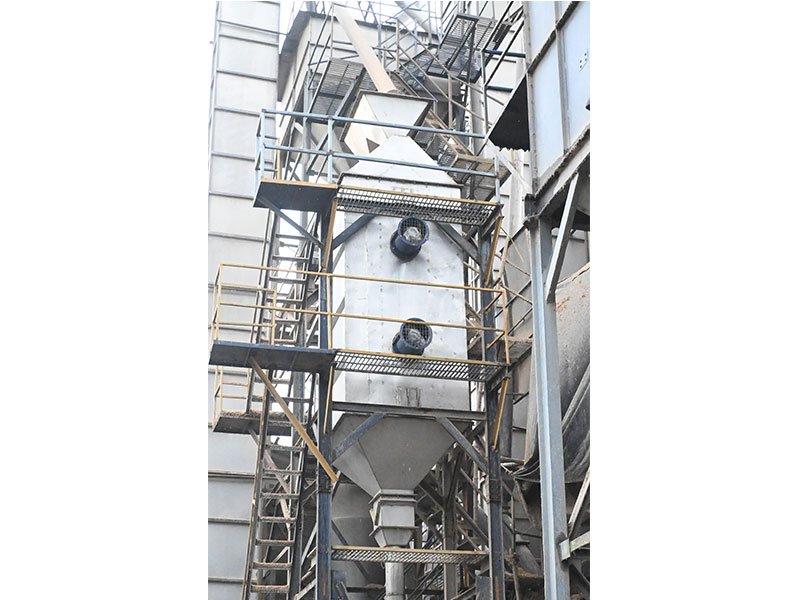

DE-HUMIDIFIER/ COOLER WITH FAN

To install between parboiling plant and dryer plant

Cooling of paddy
Reduce moisture
Remove residual water in paddy

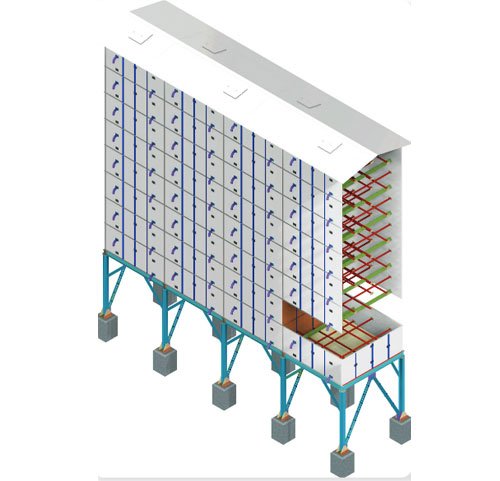

SILO

Natural air circulation system for Raw/ Parboiled paddy

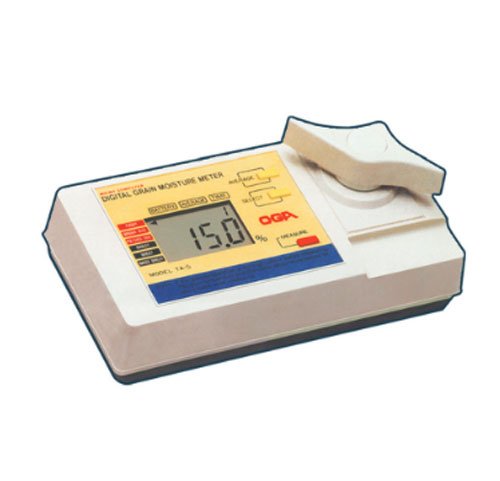

DIGITAL GRAIN MOISTURE METER

Measurement of moisture content in the paddy, brown rice, polished rice

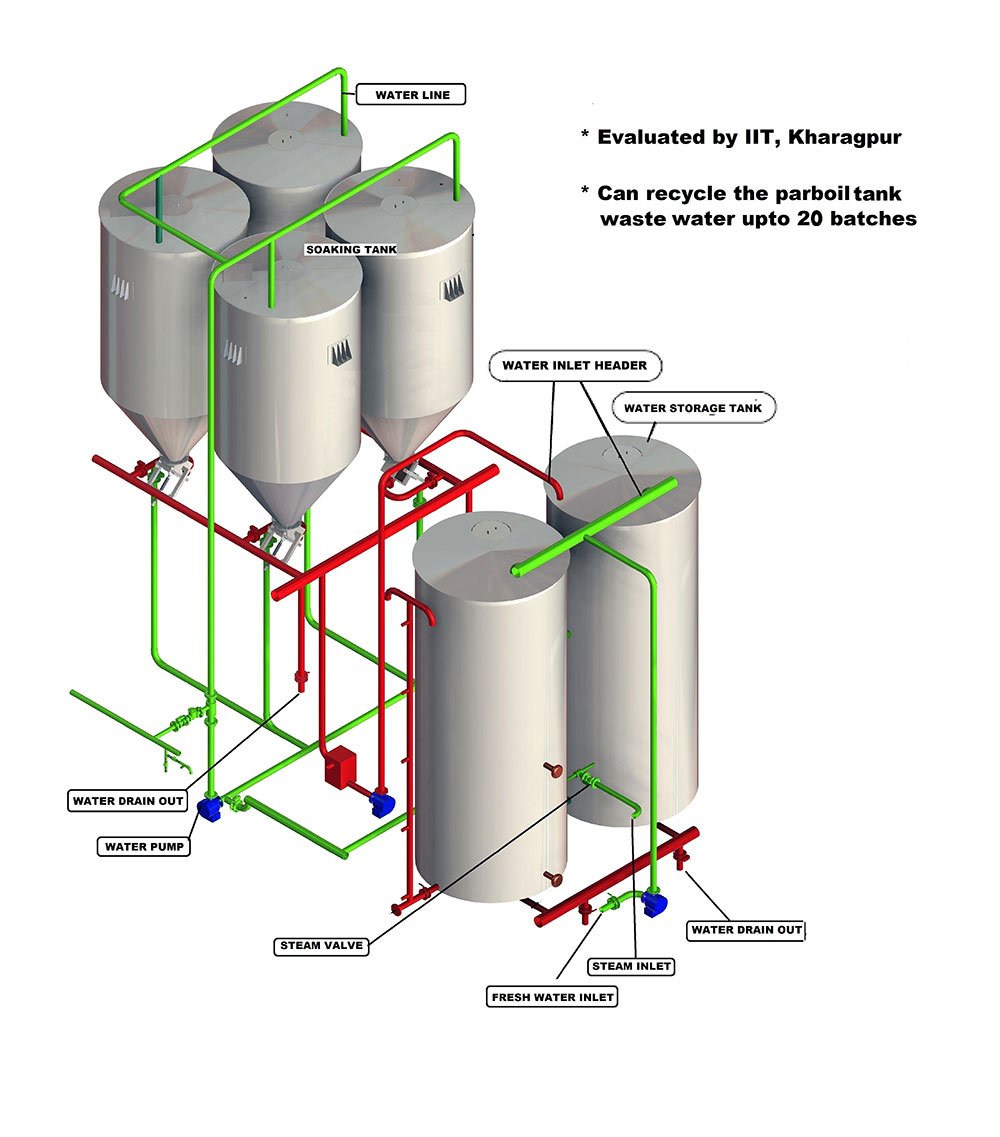

WATER SAVING TECHNOLOGY

Induss has earned the PATENT for the award-winning technology ‘Water Recycle Technology’ from Govt. of India.

Latest revolution in Rice Mill industry – 70% savings of water.

The Advantages of This Recycling are:

Conservation of water – Water requirement is reduced from 1.20 kl to 0.30 kl per ton of paddy processed. Water demand for the parboiling process is reduced by 4 times.
Low steam requirement – Energy conservation.
Eliminates the need for expensive waste water treatment plant. The 5% water discharge from bottom of tank can be used for plants, road cleaning etc.
Destroys or inactivate micro-organisms.
No discoloration, offensive flavour.
No effect on quality of rice including colour, flavour, broken and food quality and food safety.
Eliminates water pollution.
Reduces husk consumption in hot water preparation.

Highlights

More than 250 Water Recycle Treatment Plants have been successfully installed in rice mills all over India.
In a standard 300 tonne/day rice producing mill, water saved through WRS treatment is 64 million litres (approx.) resulting to a total savings of Rs 32 lakhs (approx.)
The WRS technology by Induss has been evaluated by IIT-KGP and certified by Govt. of India.

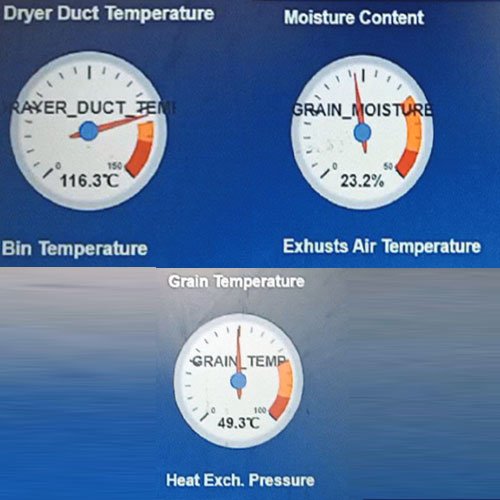

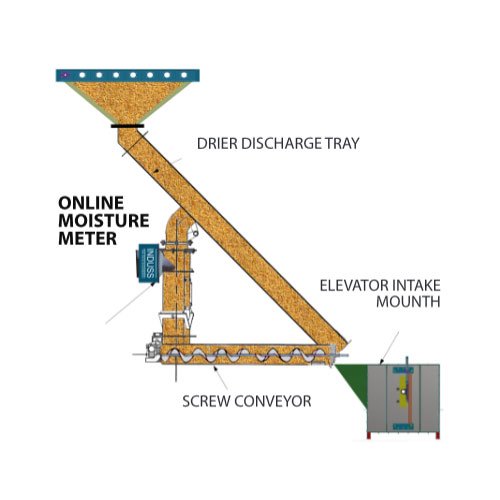

SMART DRYER CONTROLLER

Here’s how the PLC-based Smart Dryer Controller works:

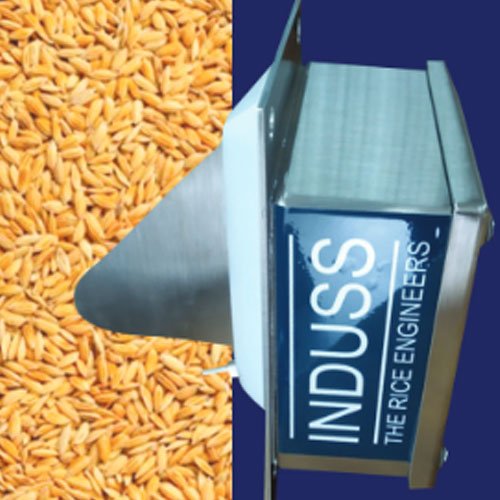

Online Moisture meter works on Di-electric principle.
Metal sheet forms the negative plate and metal fin forms the positive plate.
Paddy acts as di-electric substance.
A sensor gives the paddy moisture.
Signal terminal box provide necessary analog signals.
The steam flow linked to moisture gets adjusted automatically.

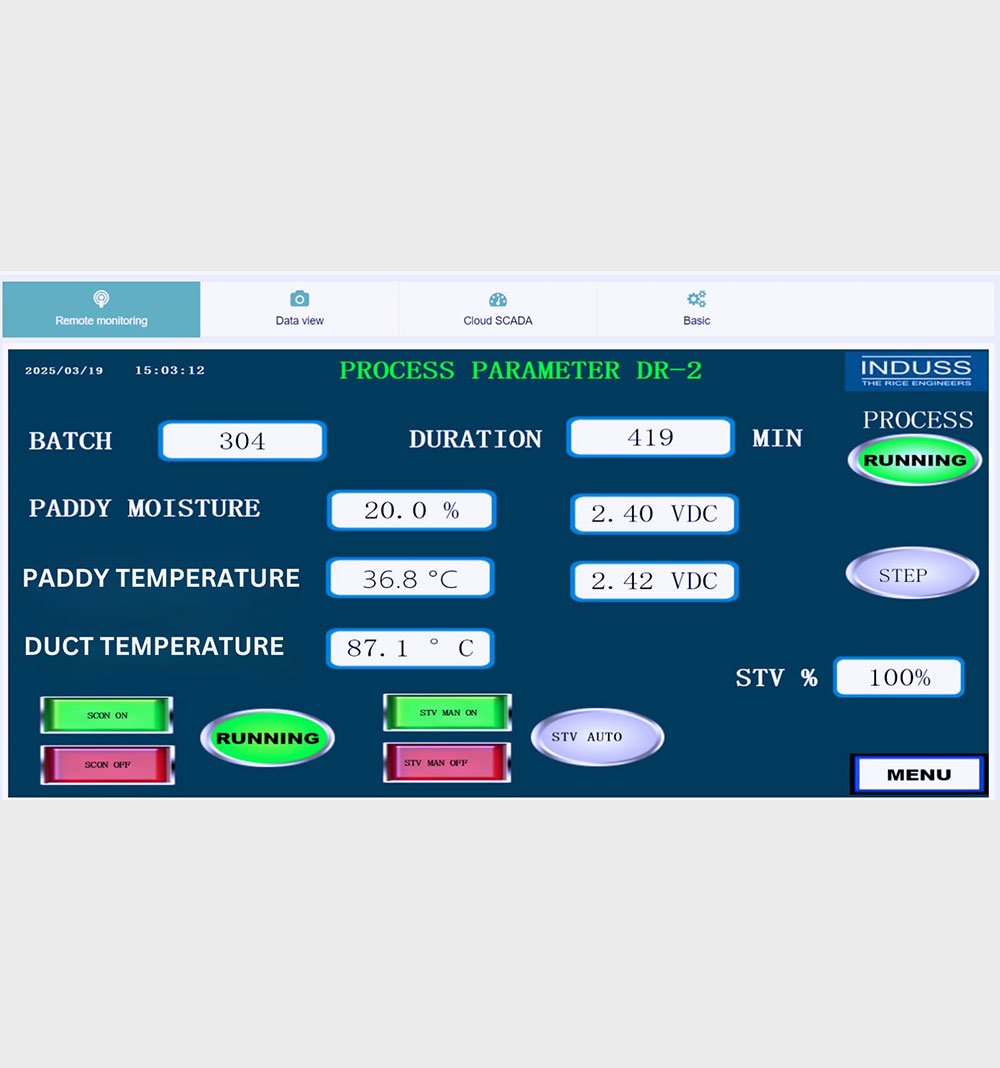

REMOTE DATA ACCESS

The data can be accessed from anywhere, on mobile using cloud technology.

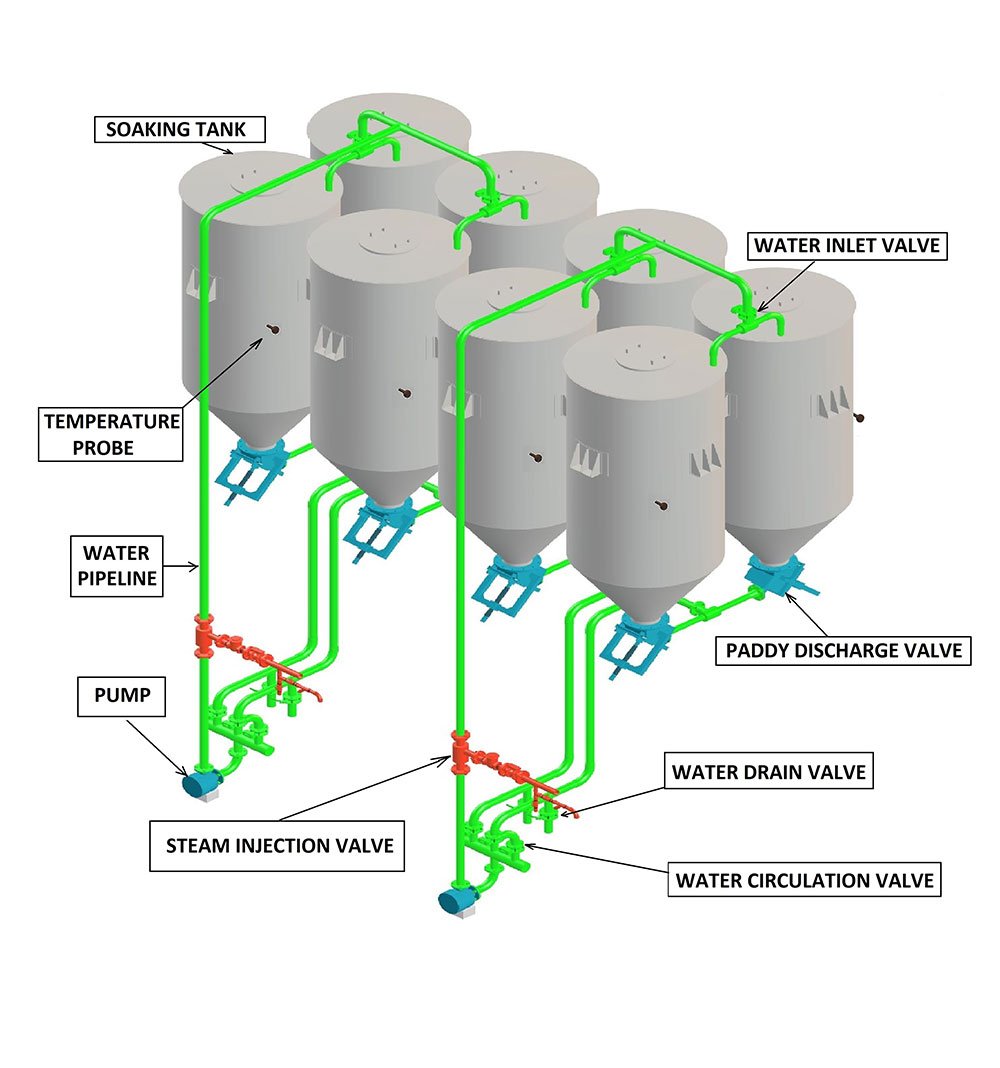

SEMI-AUTOMATION

Reduces soaking time – 3 to 4 hours
Reduces drying time
3-4 batches per day against traditional 2 batches
Uniform temperature and colour
Less brokens

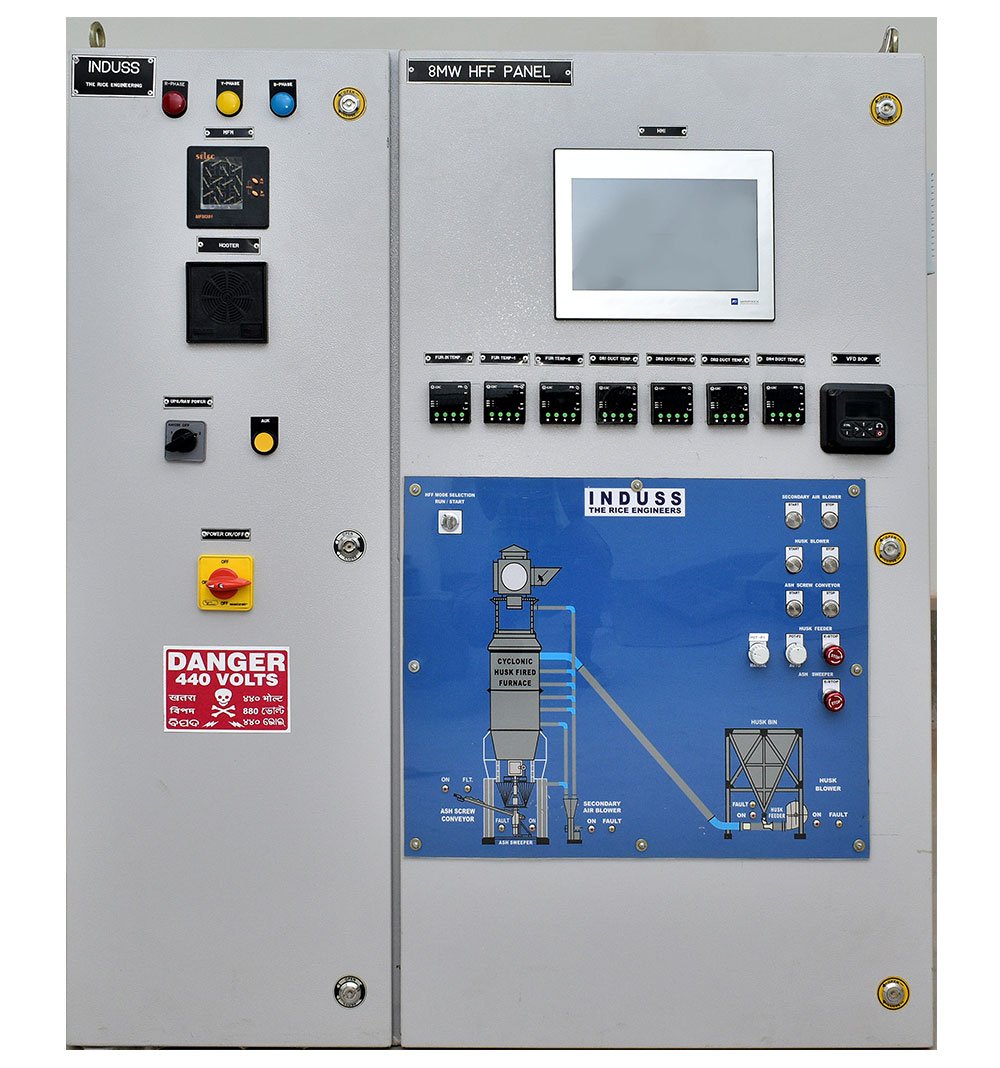

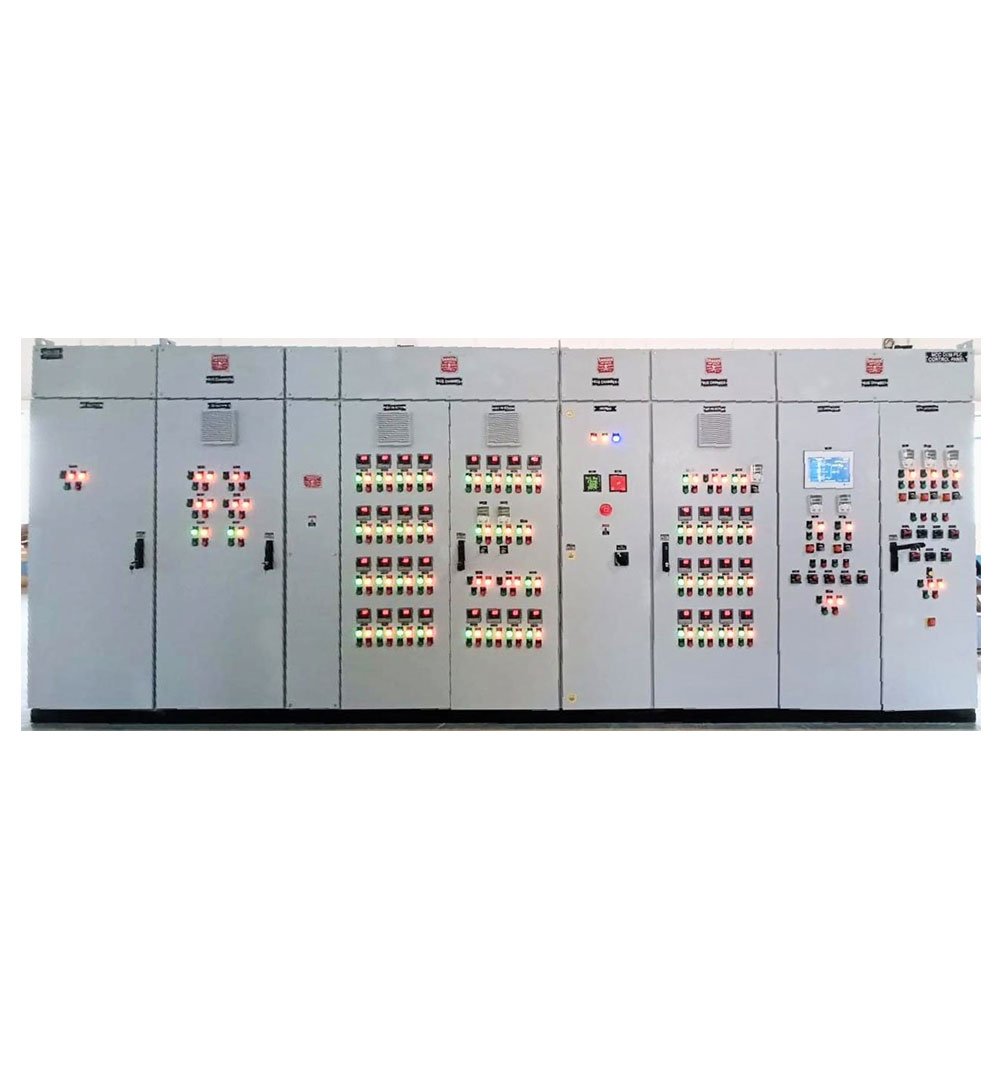

ADVANCED AUTOMATION TECHNOLOGY

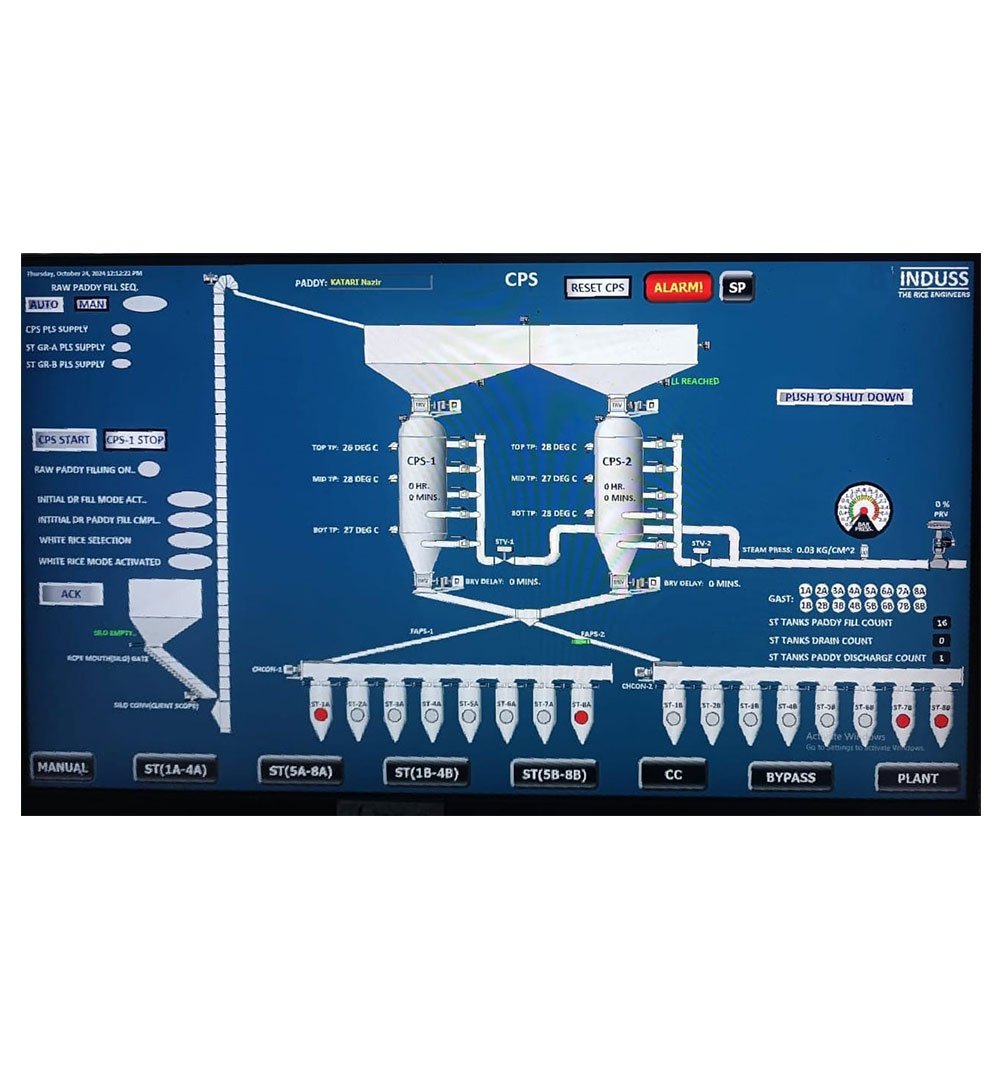

Induss is one of the pioneers in introducing SCADA / HMI based Automation using latest State of Art PLC System.

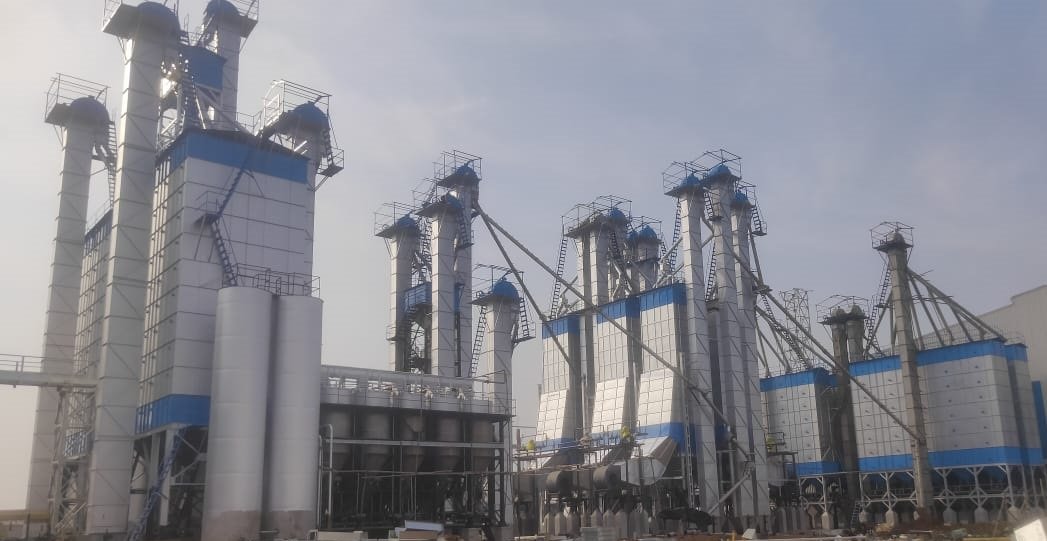

PARBOILING PLANT

ALL TYPES OF DRYERS WITH MOISTURE CONTROL

ONLINE CONTINUOUS COOKER PLANT

WATER RECYCLE SYSTEM

CYCLONIC HUSK FIRED FURNACE

CONTINUOUS STEAMING PLANT

Induss offers cloud-based Industrial Internet of Things (IIoT) solutions covering:

Data Acquisition: Enabling real-time data collection and analysis.
Plant Remote Monitoring & Control: Providing remote access and control for enhanced operational efficiency.
Data can be accessed through Mobile, Tablet or any handheld devices.
Data storage available for analysis and optimising plant efficiency.
